Semi Truck Chassis Dyno Motorcycle Chassis Dynamometer Dyno 4.4kw

Name: Semi Truck Chassis Dyno Motorcycle Chassis Dynamometer Dyno 44kw
Brand: AA4C
Price: 2 USD

Place of Origin : Shanghai, China

Brand Name : AA4C

Supply Ability : 10000 Carton/Cartons per Year

Price : $2,000.00 - $3,000.00/Cases

MOQ : 5pcs

Warranty : 12 Months

Product name : AA4C suspension Tester

Max. pass axle load (KG) : 4000

Max. test axle load (KG) : 3000

Vibration Frequency (HZ) : Over 23

Deviation of Repeatability : less than 2%

Oscillation(mm) : 6

Motor Power (KW) : 2*2.2

Payment term : T/T 30% Deposit

MOQ : 1 Set

Function : VEHICLE TEST LANE

Port : Shanghai

Contact Now

Semi Truck Chassis Dyno Motorcycle Chassis Dynamometer Dyno 4.4kw

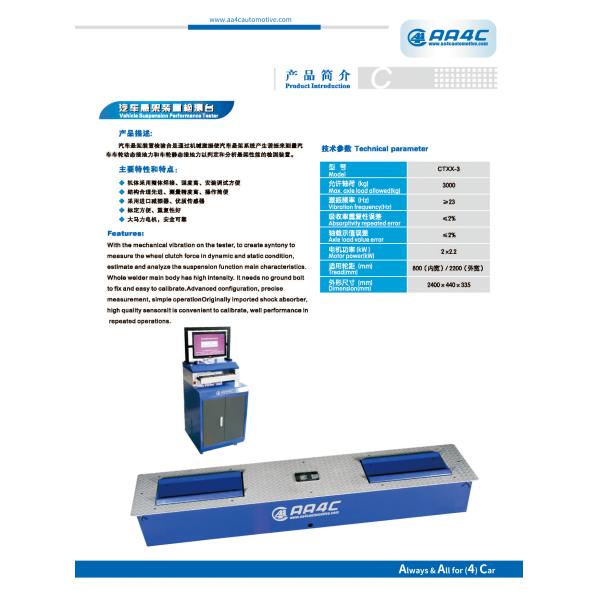

AA4C vehicle Inspection Station auto car vehicle test line Vehicle suspension performance Tester CTXX-3

Features

* Galvanized plates with longer service life. The machine body adopts integral welding with high strength, which is convenient
for installation and debugging
* Low noise structure design is adopted to reduce vibration interference caused by equipment noise.
* The software interface is easy to operate, learn and use
* Imported shock absorber and high-quality and high-precision sensor are adopted, with stable performance. Easy maintenance of
products
* Which can test fast with high accuracy of test data, convenient calibration and good repeatability
* The test results display in the visual graph are convenient to compare the situation before and after the suspension
maintenance
* High power motor, safe and reliable.
* Based on the EUSAMA measurement standard, the product meets the industry standard JT / T448-2001

Technical parameters

ModelCTXX-3
Max. pass axle load (KG) 4000
Max. test axle load (KG) 3000
Vibration Frequency (HZ) ≧23
Deviation of Repeatability of Absorption Rate ≦2％
Deviation of Axle Weight Indicating Value≦2％
Oscillation(mm)6
Motor Power (KW)2×2.2
Applicable Tread (Inner Width/Outer Width) (mm)800/2200
Power SupplyAC380V 50Hz
